浸水式冷卻泵浦 1/6 HP TC-6150

The TC Series coolant pump is developed for spraying of cooling lubricants and the circulation system, especially for machine tools. It is suitable to driver liquids such as water, coolant, light oil and other clean, non-aggressive matters liquid to cooling or lubricant applications. TC Series can be used in all type machine tools to perform Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. operation (Lathing machine drilling machine, lapping machine, Milling machine, pressing machine, stamping machine, tapping machine, punch machine, cooling system, oil cooling, water circulation)

- Powerful and high-performance coolant liquid pump

- Whole models with efficient filterable strainer.

- Solid entire unit and high stability & reliability.

- Well design to dissipate thermal- CE & IP54 with utility patents

- Brand: YU HSENG

- Model: TC-6150

- Power: 125W (1/6 HP )

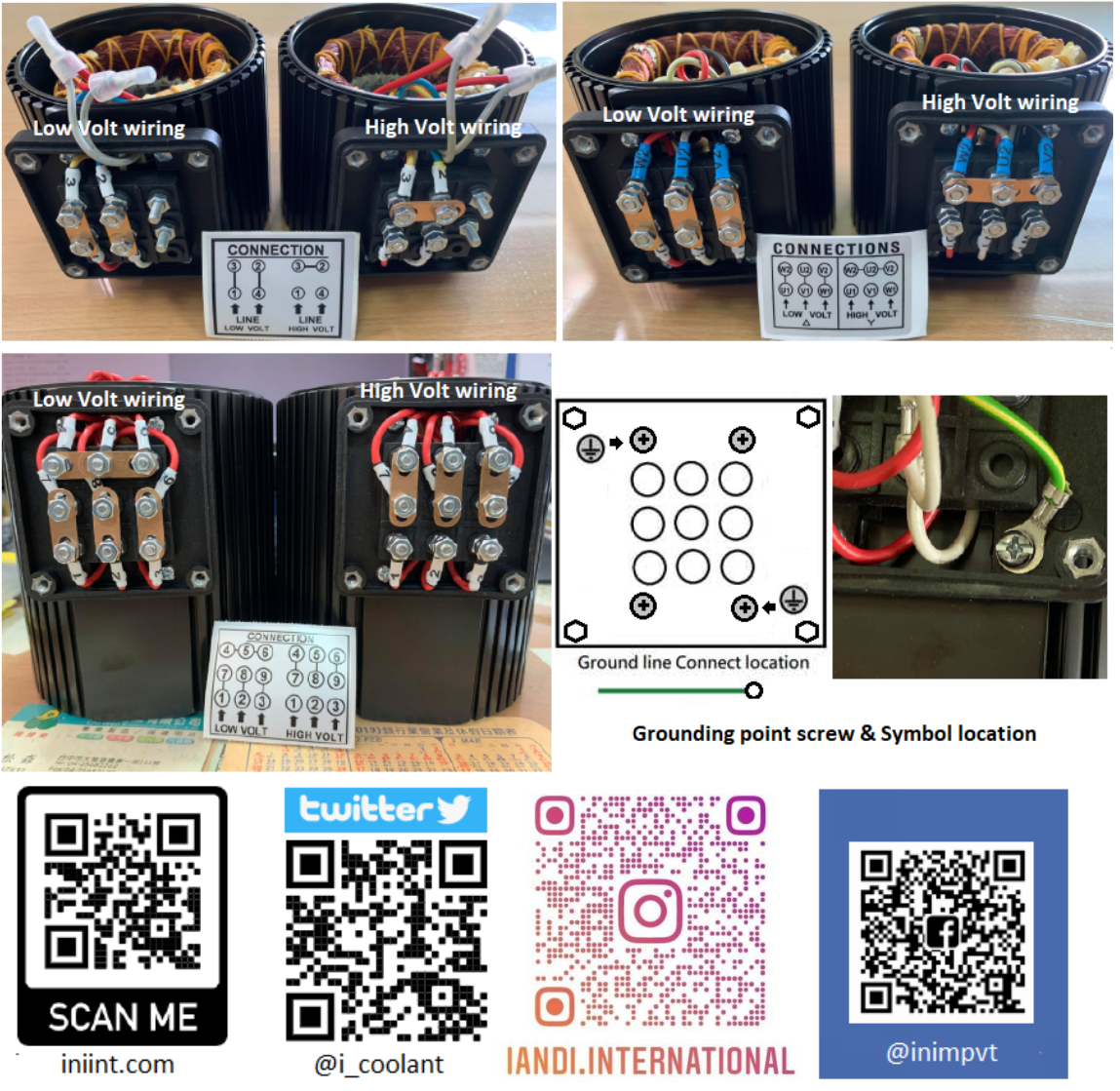

- Phase & Voltage ( Low Volt / High Volt ) Options:

  1 Phase& 100/200V, 110/220V, 120/240V

  3 Phase & 208/415V, 220/380V, 220/440V, 230/460V, 240/480V

  (Manufacture default wire in high )

- Discharge Bore: NPT  3/8 ", NPT 1/2", PT 3/8", PT 1/2"

  (PT=BSPT=Rc)

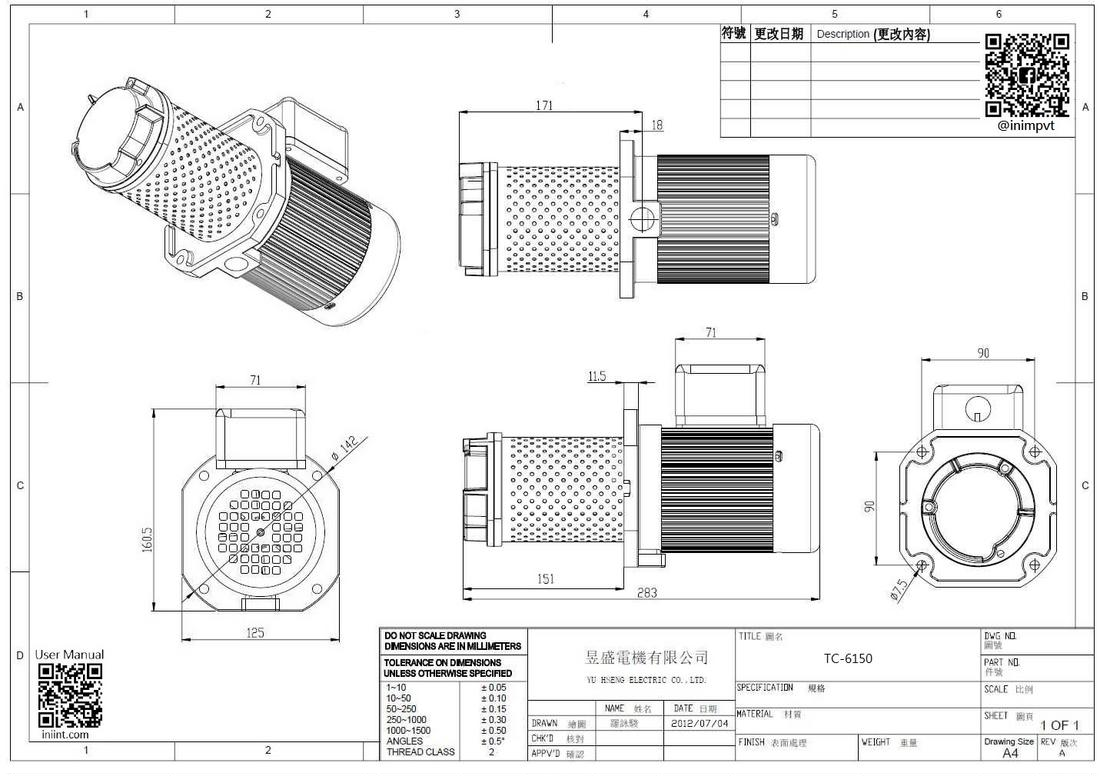

- Length (flange to bottom): 150mm (6 ").

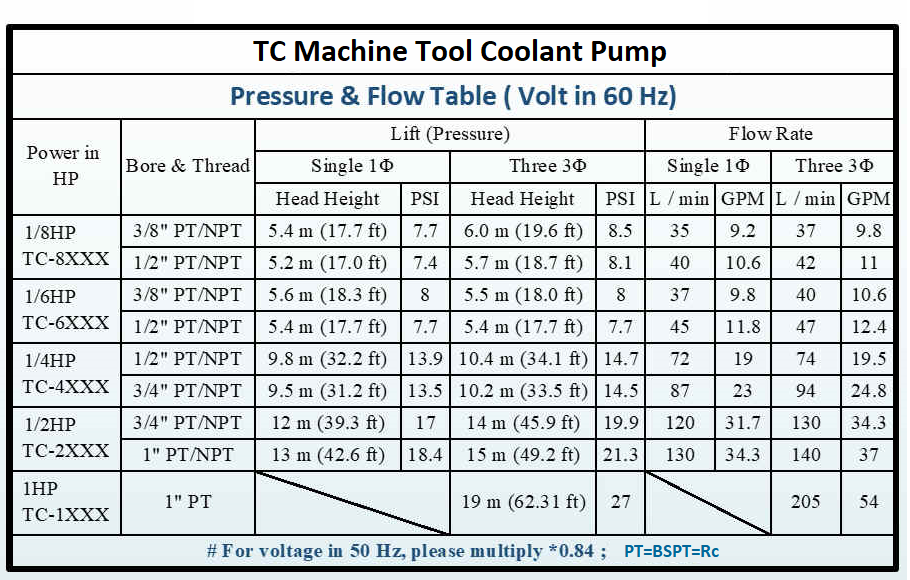

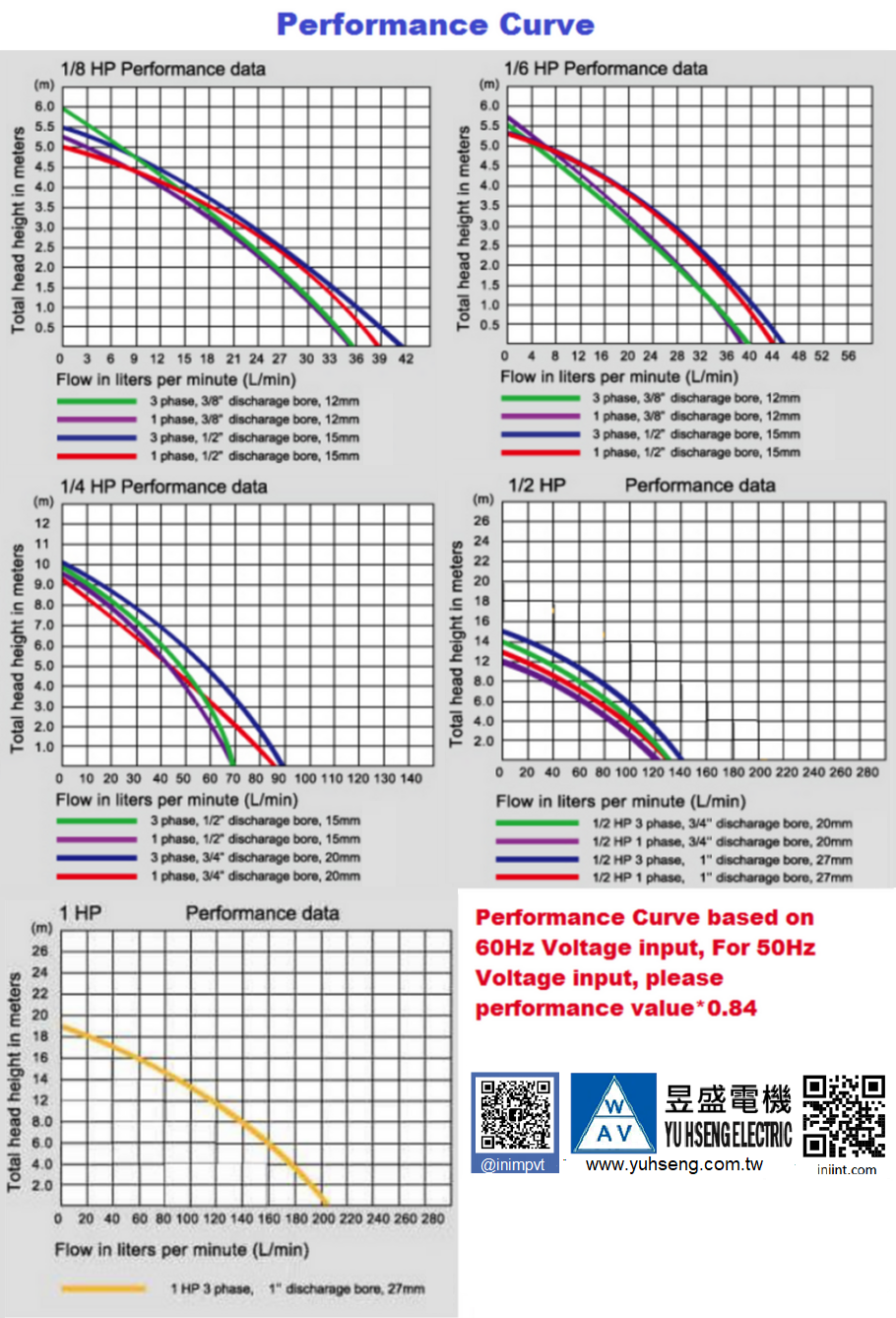

- Flow rate in 60 Hz:

  1Φ, 3/8": 9.5   GPM (37 L/min)
  3Φ, 3/8": 10.6 GPM (40 L/min)
  1Φ, 1/2": 11.8 GPM (45 L/min)
  3Φ, 1/2": 12.4 GPM (47 L/min)

- Lift (Head Height) in 60 Hz :

  1Φ, 3/8": 5.6 M
  3Φ, 3/8": 5.5 M
  1Φ, 1/2": 5.4 M
  3Φ, 1/2": 5.4 M

- Pressure in 60 Hz :

  1Φ, 3/8": 8.0 PSI
  3Φ, 3/8": 7.8 PSI
  1Φ, 1/2": 7.7 PSI
  3Φ, 1/2": 7.7 PSI

- Made in Taiwan
